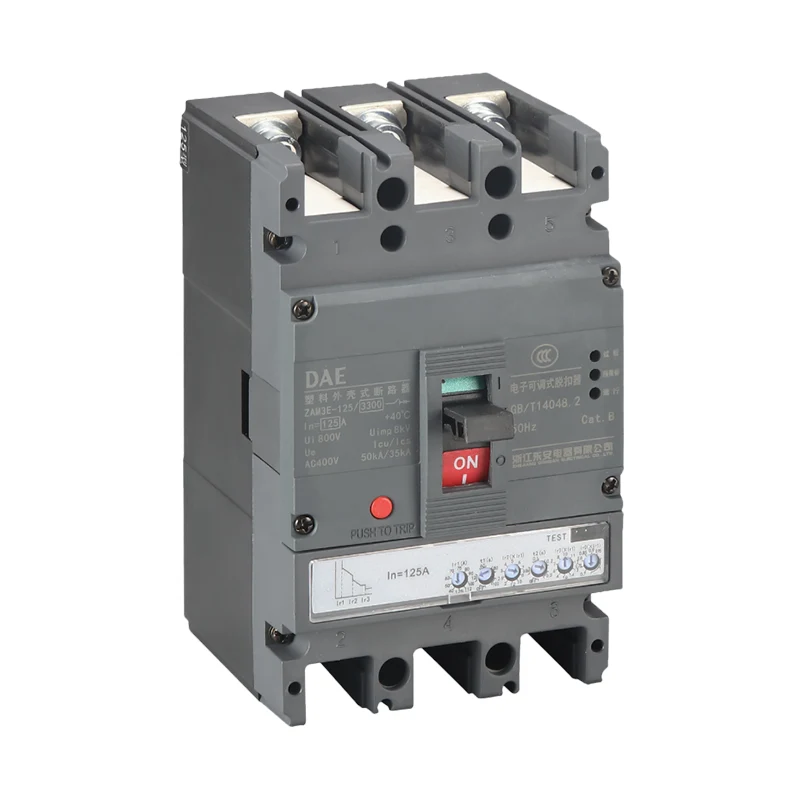

125A Electronic Circuit Breaker

GreenWatt's 125A Electronic Circuit Breaker are designed to provide precise and customizable protection for modern electrical systems. These breakers feature advanced electronic trip units that allow users to adjust current settings, delay times, and protection parameters to match specific application requirements. The adjustable settings ensure optimal performance in diverse environments, from industrial machinery to commercial installations. The breakers are housed in durable, flame-retardant plastic casings, offering excellent insulation and resistance to environmental factors. With a high breaking capacity of up to 100kA, they deliver reliable protection against overloads, short circuits, and ground faults. GreenWatt's breakers also include intuitive interfaces for easy configuration and real-time monitoring, reducing downtime and maintenance costs. Customization options are available through our ODM services, and free samples are offered to demonstrate their superior functionality.

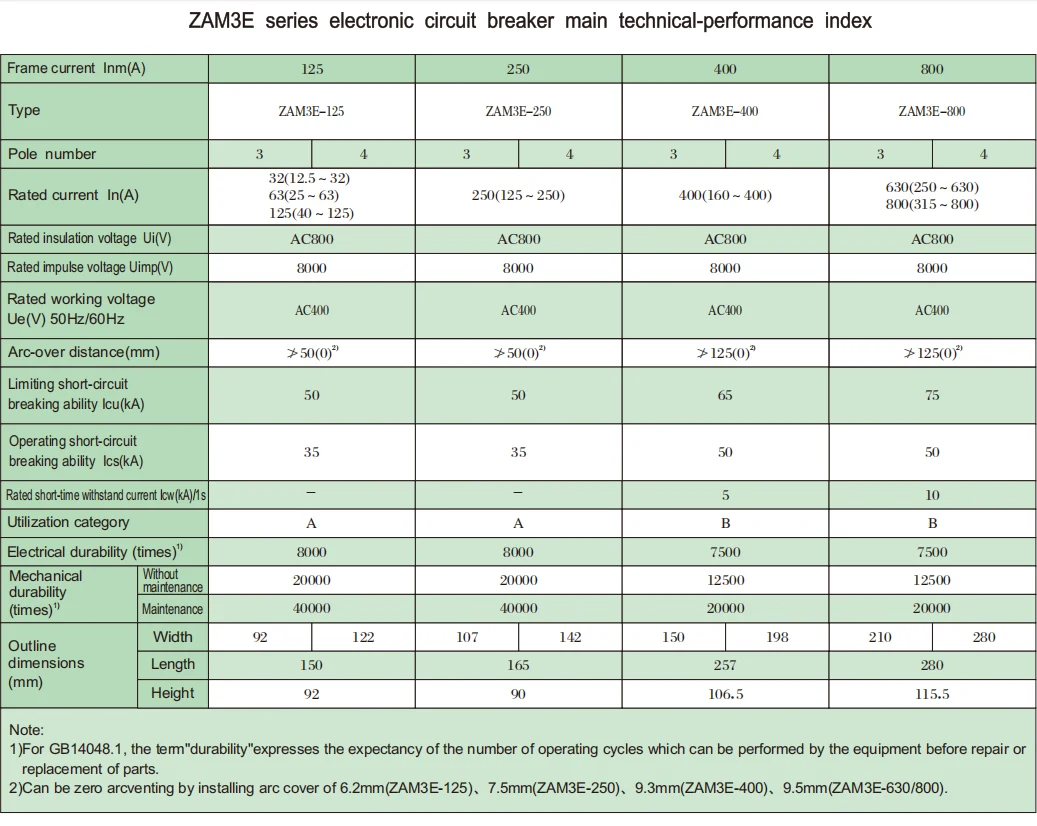

ZAM3E 125A Electronic Circuit Breaker Parameter

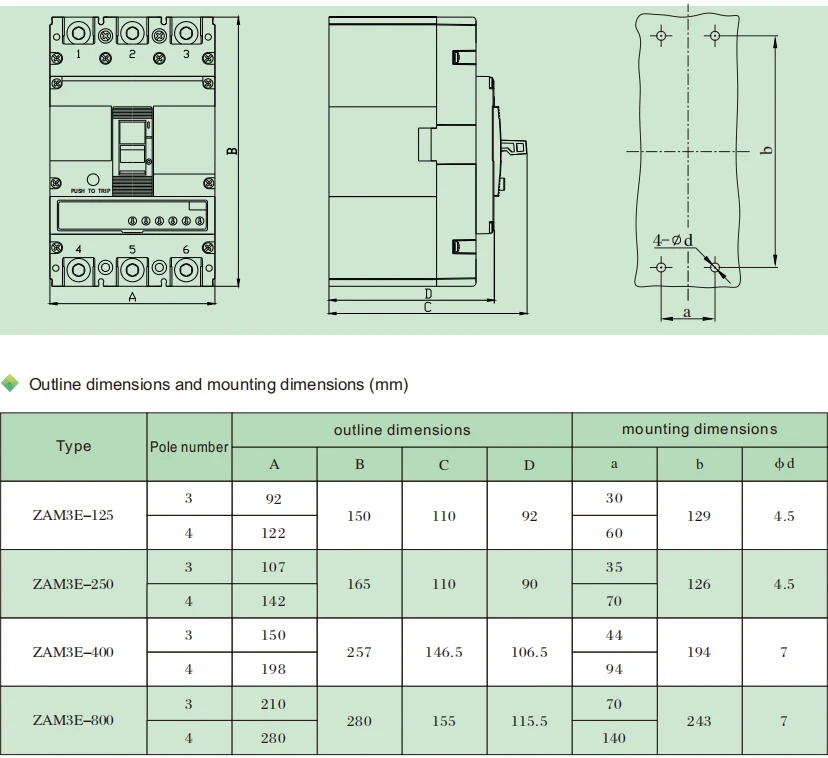

ZAM3E 125A Electronic Circuit Breaker Outline dimensions and mounting dimensions
