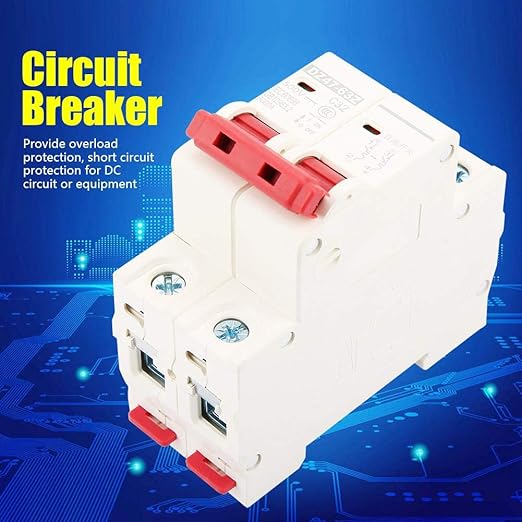

DC 500V 32A Circuit Breaker | 2P MCB for Solar Panel Power System
The DZ47-63Z-2P DC Circuit Breaker is designed for overload and short-circuit protection in DC circuits and equipment. Built with a high-performance flame-retardant housing, it ensures fire resistance and durability. With a high shut-off capacity of up to 6kA, it provides reliable protection and safe operation. The breaker offers high sensitivity and fast response, strong compatibility with various systems, and a long service life of up to 20,000 mechanical operations.
Send Inquiry
Product Description
Function:
1. Overload protection, short circuit protection for DC circuit or equipment.
2. High performance flame retardant housing, fire retardant, not easy to wear.
3.High shut-off capacity up to 6kA
4.High sensitivity, fast response.
5.Strong compatibility, long service life.
Specifications:
Model: DZ47-63Z-2P
Poles: 2P
Rated Voltage: 500 V
Rated Current: 32A
Shut-off capacity: 6 kA
Mechanical life: 20,000 times
Trip Method: Over Current
Weight: Approx. 6.3 oz (179 g).
Package L ist:
1 x Circuit Breaker
Hot Tags: DC 500V circuit breaker, 32A MCB, 2P solar breaker, solar panel protection switch, solar power system MCB, DC system circuit breaker, electrical leak protection, bus box shut-off switch, small power generation system, solar DC breaker
