DC 500V MCCB: Specialized Protection for High-Voltage Direct Current Systems

2025-04-27

As solar farms, battery storage, and electric vehicle charging infrastructure expand, DC 500V MCCBs have become critical safety components. Unlike standard AC breakers, these are engineered to handle the unique challenges of interrupting high-voltage direct current.

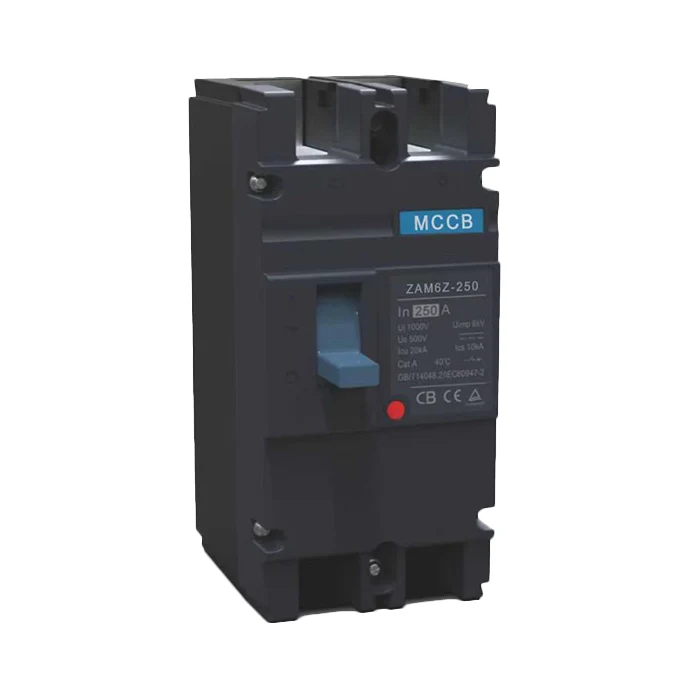

DC 500V MCCB

Why Can't Regular Breakers Handle 500V DC?

Three fundamental differences demand specialized design:

1. No Natural Zero-Crossing – DC arcs sustain longer, requiring magnetic blowout chambers

2. Polarity Sensitivity – Must maintain correct +/- orientation

3. Higher Arc Energy – Requires faster contact separation and arc chutes


Key Applications Driving Demand

- Solar Array Combiner Boxes – String protection up to 1500VDC

- Battery Energy Storage – Safely isolating lithium-ion racks

- EV Fast Chargers – Protecting 400-500V DC bus lines

- Traction Power – Rail/subway electrical systems


Technical Innovations in DC MCCBs

• Double-Break Contacts – Forces two arc points for quicker extinction

• Ceramic Arc Chutes – Withstands 500V DC arc temperatures

• Polarity Markings – Prevents reverse installation errors

• Tested 10kA+ Ratings – For fault currents in battery banks


While physically similar to AC breakers, DC versions undergo completely different testing (IEC 60947-2 Annex M). Proper selection requires checking:

- Voltage rating (500VDC continuous)

- Polarity configuration (uni/bidirectional)

- Ambient temperature range (-25°C to +70°C for outdoor use)
