AC MCCB Guide: AC800V, AC400V & Electronic Breakers for Power System Protection

Introduction: Safety Guardians for AC Power SystemMolded Case Circuit Breakers in AC Power Systems as a Safety Guardian.

A Molded Case Circuit Breaker (MCCB) is an important device that has been widely used around the world in power distribution systems for many decades to protect circuits and power equipment. Demand for these advanced devices has spread from factories, offices, and homes to cover all types of industrial and commercial buildings, where the reliable distribution of power and the protection of people and equipment from electric shock have paramount importance.

System design. With improved energy efficiency and advanced grid conditions, choosing AC800V MCCBs is a key consideration when designing modern electrical systems. These protection devices serve not only as a safeguard against overcurrent conditions, but also aid in improving overall system reliability and system productivity.

Basics and Principles of AC MCCBs

Moulded Case Circuit Breakers (MCCBs) are high-quality products for protecting electrical circuits from currents that can cause overloads and short circuits. Unlike small MCBs used in domestic circuits or RCCBs, which mainly offer protection against electric shock, MCCBs protect any electrical fault, thus covering the two most critical parameters that can damage an electrical circuit, i.e., OLP = Over Load Protection, SGP = Short Circuit Protection.

The main structure of MCCB is comprised of the operating mechanism, trip unit, arc extinguishing chamber, and the system of contact. The trip unit senses the fault and initiates the operating mechanism to open the contacts and thereby the electric circuit, under safe conditions. The arc extinction chamber makes sure that an electric arc produced when the circuit breaks is extinguished rapidly, and thus no damage is caused to the apparatus.

The rated voltage, rated current, and short circuit breaking capacity are essential parameters. These characteristics define the use of an MCCB and the degree of protection coordination that is possible in an electrical installation.

Technical Data and Applications of AC800Vvs AC400V MCCBs

The AC800V MCCBs are a type of product designed for high-voltage applications, such as industrial buildings, factories, production lines, etc., where high power extends beyond general use. They are ideal for applications in which there is demand for high-duty protection of high-voltage machinery and apparatus, with high short circuit breaking capacity and high continuous current rated 20 January 2009.

Type of actions AC400V MCCBs are the most widely used low voltage Breakers for commercial and industrial use, able to protect three-phase systems. They are low in construction and economic investment, but also good in performance when applied in conventional building electrical systems. Typical uses for these mounted panels include general power distribution in commercial buildings and heating, ventilation, and air conditioning (HVAC).

System voltage requirements, load characteristics, fault current levels, and installation limitations must all be considered when choosing between the various available voltage ratings. The correct choice of MCCBs provides the most efficient form of protection coordination and system integrity without losing economy.

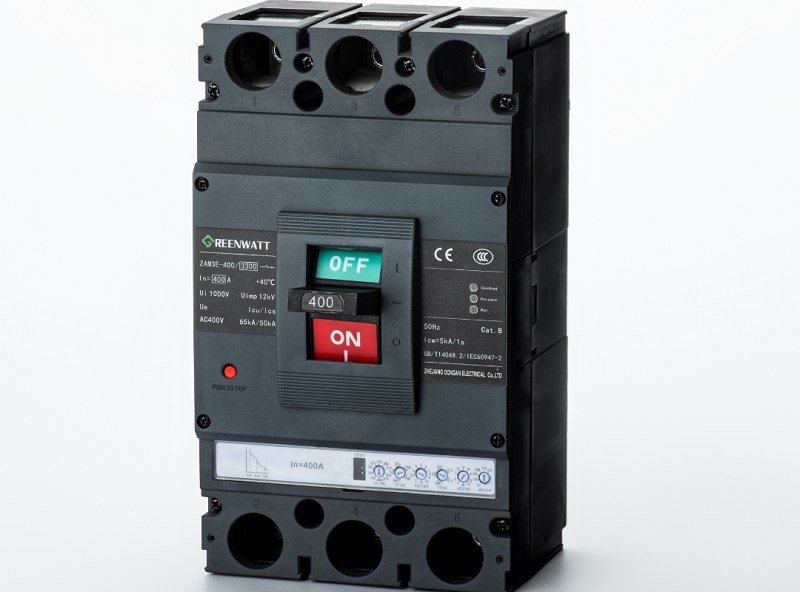

Electronic-Trip MCCBs and Intelligent Trends

The electronic-style MCCBs are the product evolution toward intelligent electrical protection control systems. Conversely, instead of bimetallic strips and electromagnetic coils like in conventional thermal-magnetic MCCBs, electronic versions incorporate highly developed microprocessor-based trip units with accurate current sensing and sophisticated protection algorithms.

A comparison of electronic and traditional thermal‐magnetic MCCBs illustrates the advantages of the former in terms of accuracy, flexibility, and functionality. Electronic versions are available in adjustable trip settings, enhanced selectivity, and minimum nuisance tripping to match the needs of applications calling for tight protection coordination.

Sophisticated functions of today's digital MCCBs include remote monitoring, extensive fault diagnostics, intelligent protection algorithms, and communication gateways from/to building management systems. The industry's leading products are from ABB, Schneider Electric, and Chint, and different degrees of intelligence and network are provided according to various application requirements.

Market Trends and Future Outlook

The world Moulded Case Circuit Breaker (MCCB) market is still growing, with the development of industrialization, and the development energies are all buoyant. The potential in Asia-Pacific markets such as China and Japan is enormous because of the high urbanization and industrialization rates.

Digitization, increased intelligence, and environmental friendliness are the focus of technological innovation. Nowadays, MCCBs are integrated with IoT connections, predictive maintenance functions, and green materials. The use of artificial intelligence and machine learning algorithms provides predictive fault detection and an optimized protection scheme.

Biggest manufacturers such as ABB, Schneider Electric, CHINT are still the leading providers of Circuit Breakers with research and development, forming the products to meet competitive market requirements. Their approaches focus on product differentiation with advanced functionality, enhanced reliability, and complete digital solutions, supporting the convergence of modern innovative grid applications.

Installation and Maintenance Practices

Attention should be paid to the mounting position of the MCCB, its tightening torque, and the environmental demands of the installation. Installation crews should also allow for proper clearances for operation and service, as well as abide by the manufacturer's requirements for terminal connections and grounding.

Typical is contact erosion, trip unit calibration drift, and arc chamber contamination. Test methods include systematic trip function tests, contact resistance measurements, and visual inspection of arc extinction devices. Part of the secret of diagnostic success is being able to get to the root of the problem fast.

The testing of trip functions, inspection of contact, and cleaning of arc chambers is to be carried out at regular intervals. Preventive maintenance intervals are generally on an annual to bi-annual basis, depending on usage and importance of the systems being protected. When it is operated in a proper way, an MCCB's service life is extended by a number of times, making it very reliable in terms of protection performance.

How to Select the Appropriate MCCB for the Safety of Your Electrical Installation？

The application of suitable MCCBs is based on a full consideration of system requirements, load properties, as well as protection coordination rules. MCCBs of AC400V and AC800V are used in such high-voltage industrial applications, and the AC400V type is also employed in commercial and light industrial systems. Electronic MCCBs provide added features and intelligence for applications requiring advanced protection characteristics.

When it comes to the selection of MCCBs, safety and reliability are two key factors to be considered. End-users should seek consultation with certified electrical engineers and adhere to the recommendations of the manufacturers for best protection. Quality MCCBs with the correct specification are an investment in the future with less maintenance, enhanced reliability of the system, and higher operator safety.

MCCB would be further digitalized, more intelligent, and closely cooperate with innovative electrical systems, to ensure they keep our electricity power systems safe and more efficient, cost-saving, and gradually improved.
