Why Choose TYPE-A RCCB for Reliable Electrical Protection?
2025-09-16
Residual Current Circuit Breakers (RCCBs) have become an essential part of modern electrical systems, offering reliable protection against electric shock, leakage currents, and fire hazards. Among the many variants available in the market, TYPE-A RCCB has gained significant attention because of its advanced detection capabilities, safety performance, and adaptability to different types of electrical loads.
In this article, we will provide a detailed introduction to TYPE-A RCCB, explore its technical parameters, explain its importance in various applications, and present a comprehensive FAQ section to address common customer concerns. Whether you are an installer, an engineer, or a procurement manager, this guide will help you understand why TYPE-A RCCB is the right choice for ensuring safety and compliance in electrical installations.

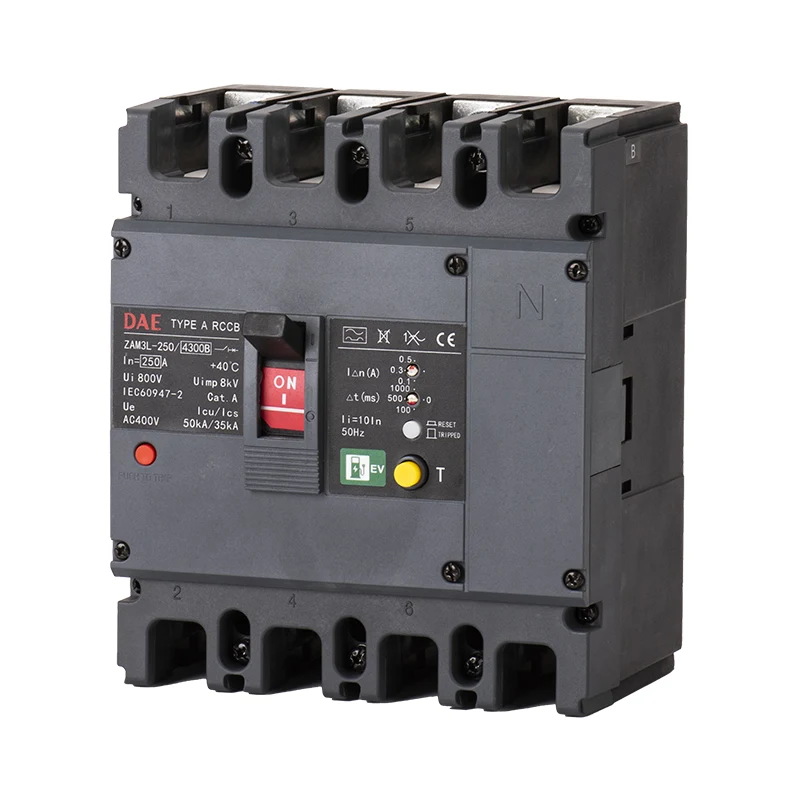

What is TYPE-A RCCB?
TYPE-A RCCB is a residual current device designed to detect and disconnect alternating residual currents (AC) as well as pulsating direct currents (DC) that may occur in modern electronic devices. Unlike TYPE-AC RCCBs, which can only detect sinusoidal AC leakage, TYPE-A RCCBs can identify fault currents caused by rectifiers, inverters, and other equipment that generate mixed or pulsating waveforms.
This feature makes TYPE-A RCCB particularly suitable for residential, commercial, and industrial applications where electronic appliances such as washing machines, induction cookers, dimmers, chargers, and variable frequency drives are used.
Key Features and Benefits
-
Wide Detection Range: Detects AC and pulsating DC residual currents.
-
Enhanced Protection: Provides superior protection compared to TYPE-AC RCCBs.
-
Application Flexibility: Suitable for both residential and commercial electrical systems.
-
Compliance Assurance: Meets international standards for electrical safety.
-
User-Friendly Installation: Compact design, easy wiring, and high durability.
Technical Parameters of TYPE-A RCCB
Below are the standard technical specifications of our TYPE-A RCCB, manufactured by Zhejiang Dongan Electrical Co., Ltd.:
| Parameter | Specification |
|---|---|
| Product Type | TYPE-A RCCB |
| Rated Current (In) | 16A, 25A, 40A, 63A, 80A, 100A |
| Rated Residual Current (IΔn) | 10mA, 30mA, 100mA, 300mA, 500mA |
| Number of Poles | 2P / 4P |
| Rated Voltage (Un) | 230V / 400V |
| Rated Frequency | 50Hz / 60Hz |
| Short-Circuit Capacity | 6kA / 10kA |
| Standard Compliance | IEC/EN 61008-1 |
| Operating Temperature | -25°C to +40°C |
| Mounting | DIN rail, suitable for modular distribution board |
| Endurance | > 4000 mechanical operations |
Why TYPE-A RCCB is Important
Choosing the right RCCB is not just a matter of compliance but also of long-term safety. TYPE-A RCCB is designed to address modern electrical challenges by:
-
Preventing Electrical Fires: By quickly disconnecting faulty circuits, it reduces the risk of fire caused by leakage currents.
-
Ensuring Human Safety: Protects against electric shocks, which can be fatal even at low current levels.
-
Adapting to Modern Loads: As electronic devices dominate both homes and industries, TYPE-A RCCB is tailored to handle complex leakage patterns.
-
Reducing Maintenance Costs: Its reliability minimizes downtime and replacement expenses.
Detailed List of Advantages
-
Reliable fault current detection (AC + pulsating DC).
-
High mechanical and electrical endurance.
-
Wide range of rated currents and sensitivities.
-
Compact size suitable for modern distribution boards.
-
Quick disconnection to ensure user safety.
-
Manufactured under strict quality control by Zhejiang Dongan Electrical Co., Ltd.
FAQ About TYPE-A RCCB
Q1: What is the difference between TYPE-A RCCB and TYPE-AC RCCB?
A1: TYPE-AC RCCB can only detect sinusoidal AC residual currents, while TYPE-A RCCB can detect both AC and pulsating DC residual currents. This makes TYPE-A RCCB more suitable for modern appliances and electronic devices, offering enhanced safety.
Q2: Can TYPE-A RCCB be used in solar or EV charging systems?
A2: Yes. TYPE-A RCCB is particularly effective in systems where electronic inverters or chargers generate pulsating DC leakage currents. For renewable energy systems and electric vehicle charging points, it provides reliable protection.
Q3: What rated current should I choose for my application?
A3: The rated current depends on your installation load. For household use, 25A to 40A is common. For commercial or industrial applications, higher ratings such as 63A or 100A may be required. Consulting a licensed electrician ensures proper selection.
Q4: Does TYPE-A RCCB require regular maintenance?
A4: While TYPE-A RCCB is designed for long-term durability, it is recommended to test the device periodically by pressing the "TEST" button. Regular inspection ensures the breaker remains functional and provides continuous protection.
Conclusion
Selecting the right RCCB is a critical step toward safeguarding electrical systems. TYPE-A RCCB offers reliable, modern, and versatile protection against both AC and pulsating DC residual currents, making it an indispensable choice for residential, commercial, industrial, and renewable energy applications.
At Zhejiang Dongan Electrical Co., Ltd., we are committed to delivering high-quality electrical protection solutions that comply with international standards and provide peace of mind to our customers. For more information about TYPE-A RCCB or to discuss customized solutions, please feel free to contact our team today.
