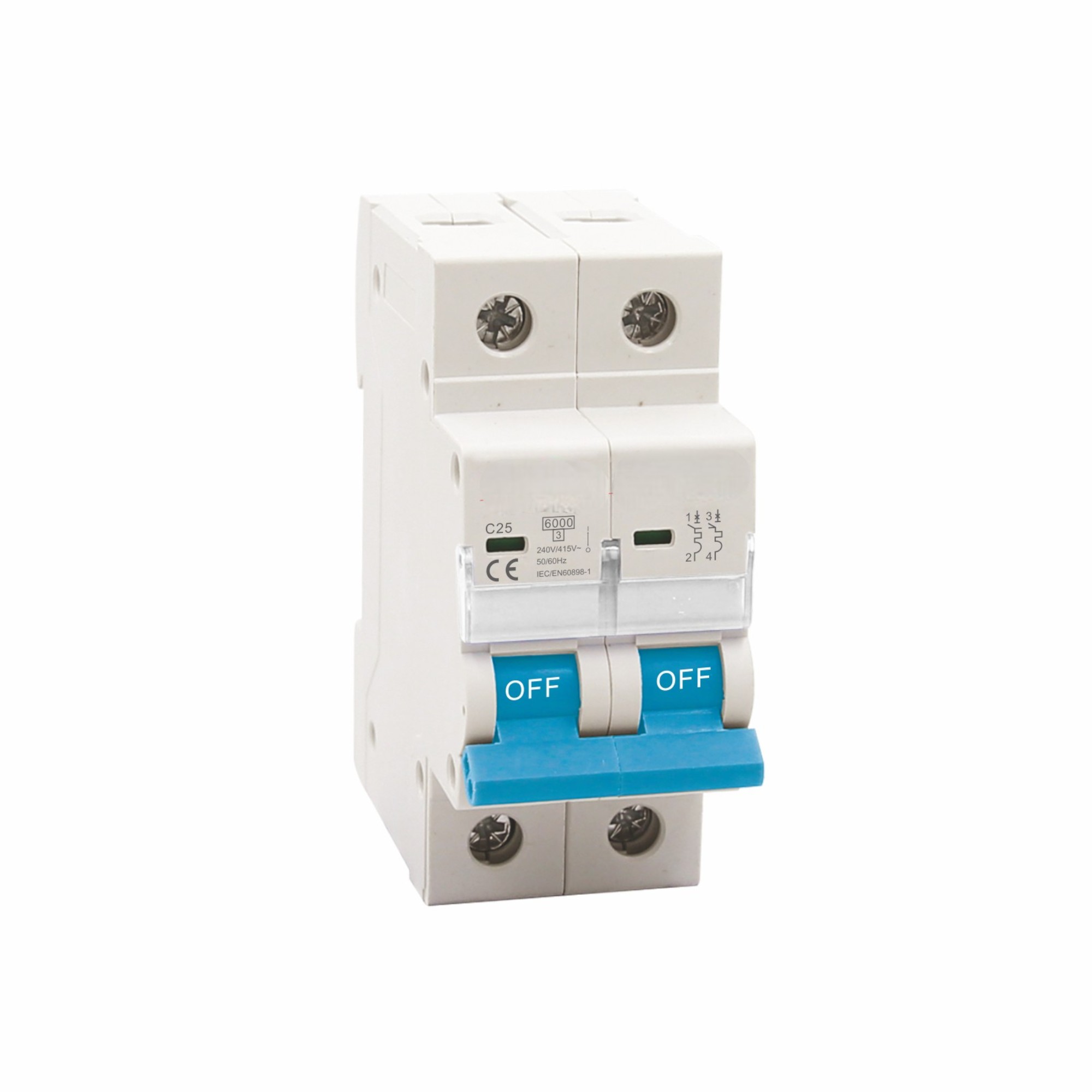

Thermal-Magnetic AC MCB | 1P-4P | 1-63A | B/C/D Curves | 415V | IEC/EN 60898-1
Parameter ValuePoles 1P, 2P, 3P, 4PRated Current (In) 1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63ARated Operational Voltage 1P: 240/415V AC; 2P/3P/4P: 415V ACTrip Unit Technology Thermal-Magnetic (Dual Protection)Tripping Curve B, C, DRated Short-Circuit Capacity (Icn) 6,000A (In ≤40A); ......
Send Inquiry
Product Description
Parameter Value
Poles 1P, 2P, 3P, 4P
Rated Current (In) 1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63A
Rated Operational Voltage 1P: 240/415V AC; 2P/3P/4P: 415V AC
Trip Unit Technology Thermal-Magnetic (Dual Protection)
Tripping Curve B, C, D
Rated Short-Circuit Capacity (Icn) 6,000A (In ≤40A); 4,500A (In=50A/63A)
Energy Limiting Class Class 3 I²t (IEC/EN 60898-1)
Rated Insulation Voltage (Ui) 415V AC
Impulse Withstand Voltage (Uimp) 4,000V
Mechanical Durability 10,000 Operations
Electrical Durability 4,000 Operations
Tightening Torque 2.5 N·m (M5 Terminals)
Network Frequency 50/60 Hz
Standards Compliance IEC/EN 60898-1
