Type 2 DC Surge Protective Device with Remote Changeover Contact | DIN-Rail, IP20

Protect DC power supplies with proven, standards-compliant surge suppression.

This Type 2 DC surge protective device (SPD) shields sensitive DC power systems from transient overvoltages at the LPZ 0B–1 boundary and beyond. An integrated remote changeover contact (FM) enables straightforward status/alarm signaling to PLCs, BMS, or SCADA, supporting proactive maintenance and rapid fault notification.

Built for industrial panels and tight spaces.

Engineered for fast, clean installation on a 35 mm DIN rail per EN 60715, the unit occupies only 54 mm of rail space—ideal for dense control cabinets and retrofit projects. Its IP20 degree of protection (IEC/EN 60529) helps safeguard operators during panel work while maintaining compactness.

Certified performance and durability.

Compliance with IEC/EN 61643-11 ensures the device meets rigorous Type 2 SPD requirements for DC applications. Mechanical robustness is verified by vibration (DIN EN/IEC 60068-2-6) and shock (DIN EN/IEC 60068-2-27) test standards, while the enclosure material meets a flammability class of UL 97 V0. EAC certification supports deployment across relevant Eurasian markets.

Typical applications

DC power supply protection in industrial automation and process control

Photovoltaic DC distribution and balance-of-system panels

Telecom and data center DC power bays

Transportation and infrastructure DC subsystems

Key specifications (at a glance)

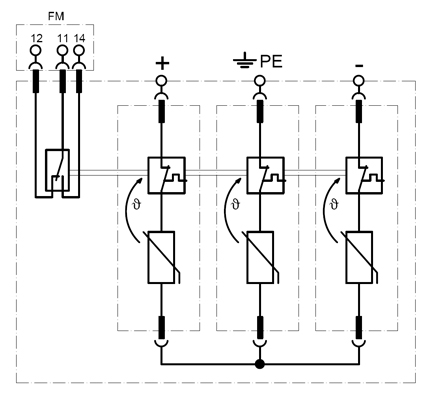

Remote changeover contact (FM) for status signaling

SPD Type 2 for DC power supplies

Applicable at LPZ 0B–1 boundary and higher protection zones

Test standard: IEC 61643-11 / EN 61643-11

Vibration: DIN EN 60068-2-6 / IEC 60068-2-6

Shock: DIN EN 60068-2-27 / IEC 60068-2-27

Mounting: 35 mm DIN rail (EN 60715)

Degree of protection: IP20 (IEC/EN 60529)

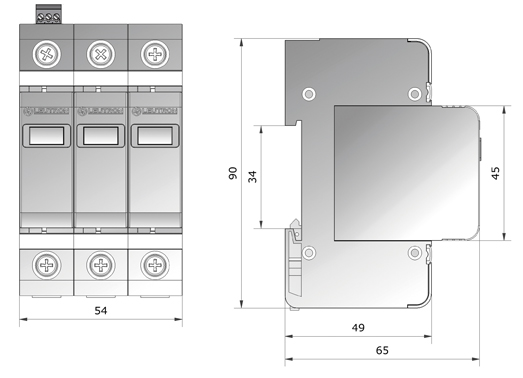

Space required: 54 mm

Flammability class: UL 97 V0

Certification: EAC
