DC SPU
- View as
Type 1+2 PV SPD | Y-Connection | No Back-Up Fuse | LPL III–IV
Combined Type 1+2 surge arresters for photovoltaic DC systems in a Y-connection topology. Each varistor path (L+, L–, PE) includes an internal thermal disconnector capable of interrupting DC current, allowing installation without a back-up fuse. Intended for PV sites with an external LPS where the separation distance “s” cannot be observed. Suitable for LPL III–IV. Options include M (removable module) and DS (remote monitoring).
Read MoreSend Inquiry
Type 1+2 DC SPD MYH9 | 600 Vdc | In 20 kA
The MYH9 is a combined Type 1+2 DC surge protective device for 600 Vdc systems. It handles In 20 kA and Imax 40 kA on the 8/20 µs waveform, withstands Iimp 12.5 kA on 10/350 µs lightning impulses, and limits residual voltage to ≤2.6 kV—ideal for PV arrays and other DC panels.
Read MoreSend Inquiry
Type 2 PV Surge Arrester (U/Y Connection) | No Back-Up Fuse | Remote Monitoring
Type 2 surge arresters for the DC side of photovoltaic systems, offered in U or Y connection. The Y variant provides earth-resistant working conductors with zero residual current through PE. Each varistor path has an internal disconnector capable of interrupting DC current, allowing installation without a back-up fuse. Versions include M (removable module) and S (remote monitoring).
Read MoreSend Inquiry
1500V DC Type 2 PV Surge Protective Device | IEC/EN 61643-31:2018
A Type 2 1500V DC surge protective device for solar photovoltaic systems. It uses three pluggable high-energy MOV modules, includes a thermal disconnect with clear fault indication, and offers an optional remote signaling contact for monitoring and alarms. Compliant with IEC/EN 61643-31:2018 for PV applications.
Read MoreSend Inquiry

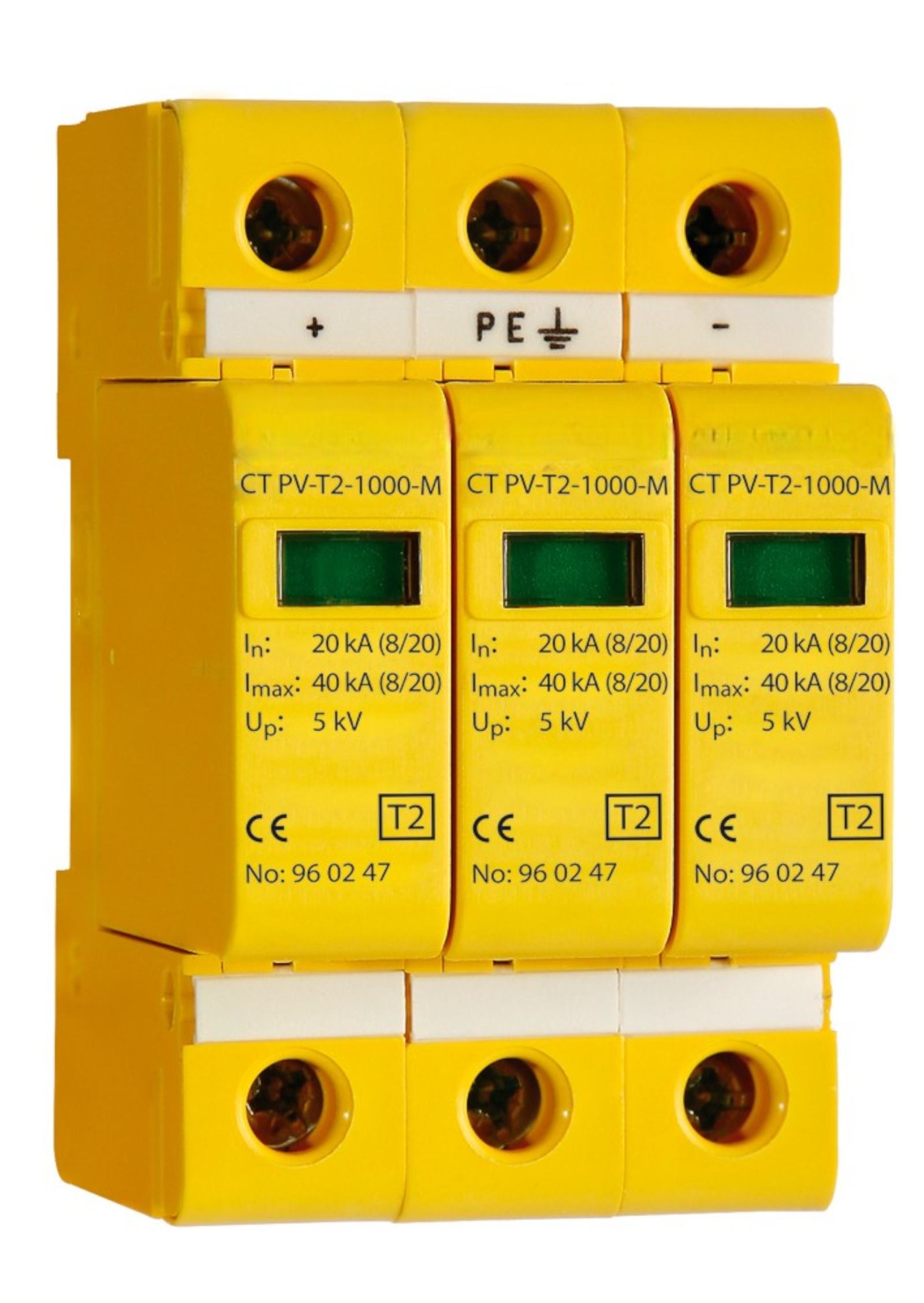

Type 2 DC Surge Protective Device with Remote Changeover Contact | DIN-Rail, IP20
A compact Type 2 DC surge protective device designed for use at LPZ 0B–1 and higher, featuring an FM remote changeover contact for status signaling. It mounts on a 35 mm DIN rail, offers IP20 protection, requires just 54 mm of space, and complies with IEC/EN 61643-11 plus vibration and shock standards. EAC certification included.
Read MoreSend Inquiry
Buy DC SPU made in China from our factory. As one of the China DC SPU manufacturer and supplier, we can provide customers with stable and high-quality products.
